Full Cutting Mobile Printer Mechanism , Wireless Printer Mechanism JP-EML205

Place of Origin : Xiamen

Brand Name : GOOJPRT

Model Number : JP-EML205

MOQ : 1

Price : Negotiated

Payment Terms : T/T, Western Union

Certification : CE/ROSH/FCC

Packaging Details : Carton

Delivery Time : 5day shipping

Supply Ability : 50000pcs/month

TPH : 50KM

Contact Now

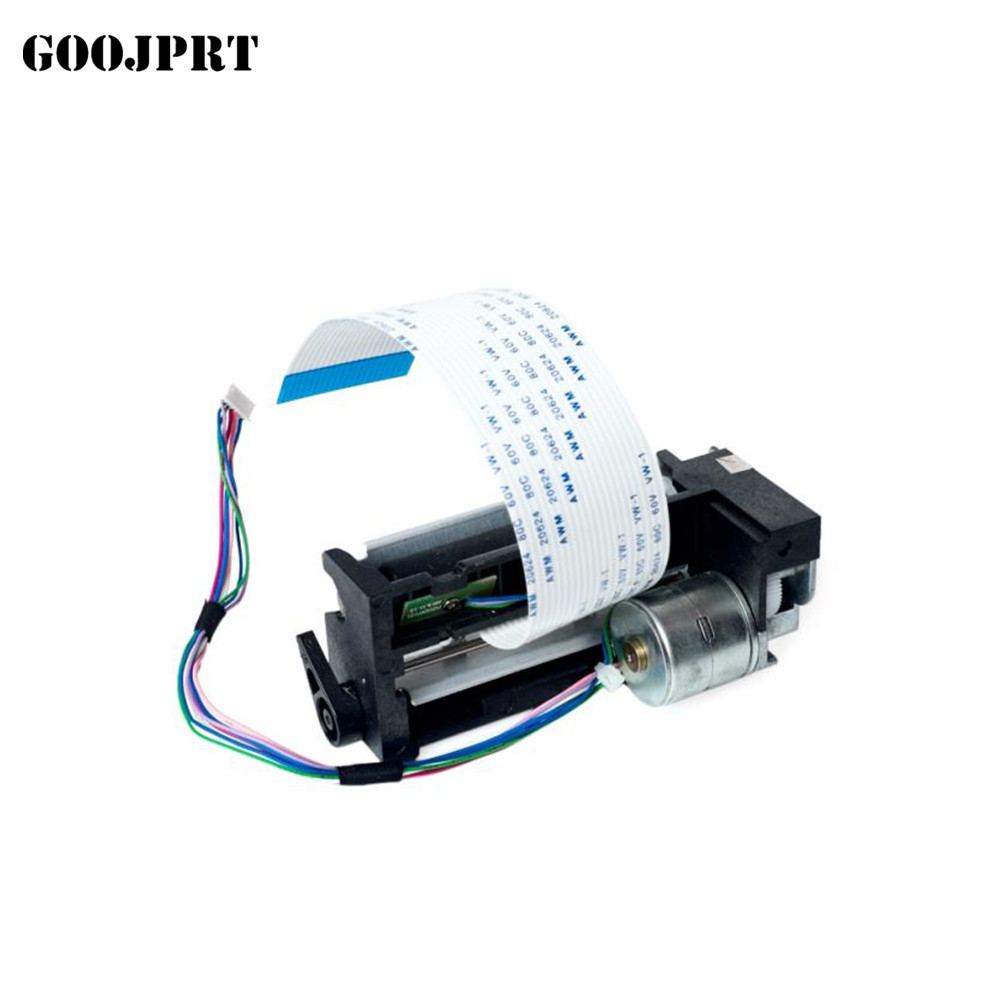

Printing mechanism, printer mechanism, electronic product, Thermal printer mechanism JP-EML205

The 58mm printer has the Power off and press feed button,then power on and printer will print a self-test page.It including baud rate,language and so on.It has the Bezel with paper taken sensor for optional.

Feature:

1. Small size,can put a length of 100 meters, a diameter of 80 mm paper roll
2. With power switch,indicator light,and paper near-end sensor
3. Used for self-service terminal equipment products such as self-service ticket machine is used
4. User can be adjusted according to the factors such as voltage,paper to print blackness and print
speed
5. Support full cutting or half cutting command choose
6. Support print double QR CODE

Application:

1. Gaming

2. Healthcare

3. Tax control

4. Library Banking

5. Inquiry Machine

Specification:

Item	KP-220 58mm kiosk ticket printer
Paper Spec	Print Font	Font A(12x24):32 Font B(9x17):42 GBK:16
	Character Size	GBK(24x24) ASCⅡ:9x17,9x24,16x18,12x24
	Paper Type	Thermal paper
	Paper Thickness	56 to 100µm
	Paper Width	58mm
	Roll core inner diameter	13mm(min)
	Paper Roll Diameter	Max.80mm
Printing	Method	Direct thermal line
	Resulotion	8dots/mm(432dots)
	Speed	max.150mm/sec
	Printing Width	48mm
Printing Support	Self-defined Character	Yes
Printing Support	Graphic	Support
Reliability	MCBF	100km
Emulation		ESC/POS
Barcode	1D	UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
Barcode	2D	QR code
Driver	Windows XP / Vista / 7 /8 /10 CE 6.0, Linux (CUPS),Android SDK
Interface	RS232C/TTL,USB
Sensors	Paper near end sensor,paper out sensor
Power Supply	24VDC
Auto cutter	Full cut or partial cut
Environment	Operating Temp 0°C~50°C
	Operating humidity 20%~85%
	Store Temp-25°C~70°C
	Store humidity 5%~95%

Full Cutting Mobile Printer Mechanism , Wireless Printer Mechanism JP-EML205
