Features:
• roll diameter: 58 mm
• extreme exquisite lightweight structure design is easy to carry
• easy paper structure is easy to use and maintenance
• equipped with large capacity rechargeable lithium battery 7.4V, 1500 Ma
• 1.2 meters cement ground height of fall
Multiple wired and wireless interfaces optional
• support the client local program upgrade
• equipped with Windows computer end drive
• equipped with WM, WINCE, Symbian, presentation software and dynamic link library Android platform
• Bluetooth host function
Applications:
• copy watch - electrical water meter charge
• Insurance - insurance field fast loss
• warehousing, inventory / distribution / warehousing
• parking - confirm parking time charge of Statistics
• logistics, express transportation invoices / goods delivery order
• mobile sales - ticket / fast consumer goods such as mobile sales
• police and police / management / business field Enforcement / health supervision
Parts list
• • • • leather belt buckle battery serial line USB interface line • rolls • charger
Detail specification
Print line thermal
The printing speed of 60 mm / s.
Effective print width 58 mm
The density of 8 / mm, 384 point / line
Printing character ANK: 8 x 16, 12 x 24 GBK:16 x 16, 24 x 24
Characters per line ANK: 48, 32 GBK:24, 16
The paper type thermal label paper
Paper width of 30 ~ 60 mm
Paper roll diameter: 40 mm
Roll core diameter of 15 mm (minimum)
Paper thickness 0.12 mm
The paper simple paper
The life of the printhead 50 kilometers
Bar code 1-D:UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93, CODE128
2-D:QR Code
ESC/POS instruction set
Interface RS-232 port, USB, Bluetooth, infrared
Power supply AC00-250V/1.0A
DC7.4V battery, rechargeable lithium battery 1.5A
The weight of 197 grams (not including rolls, including the battery)
Dimensions (WxLxH) 99 x 136.6 x 51 mm
Working temperature -10 ~ 50 ° C
Storage temperature -20 ~ 70 ° C
Work humidity 20 ~ 85%
Storage humidity 5 ~ 95%
Benefit:

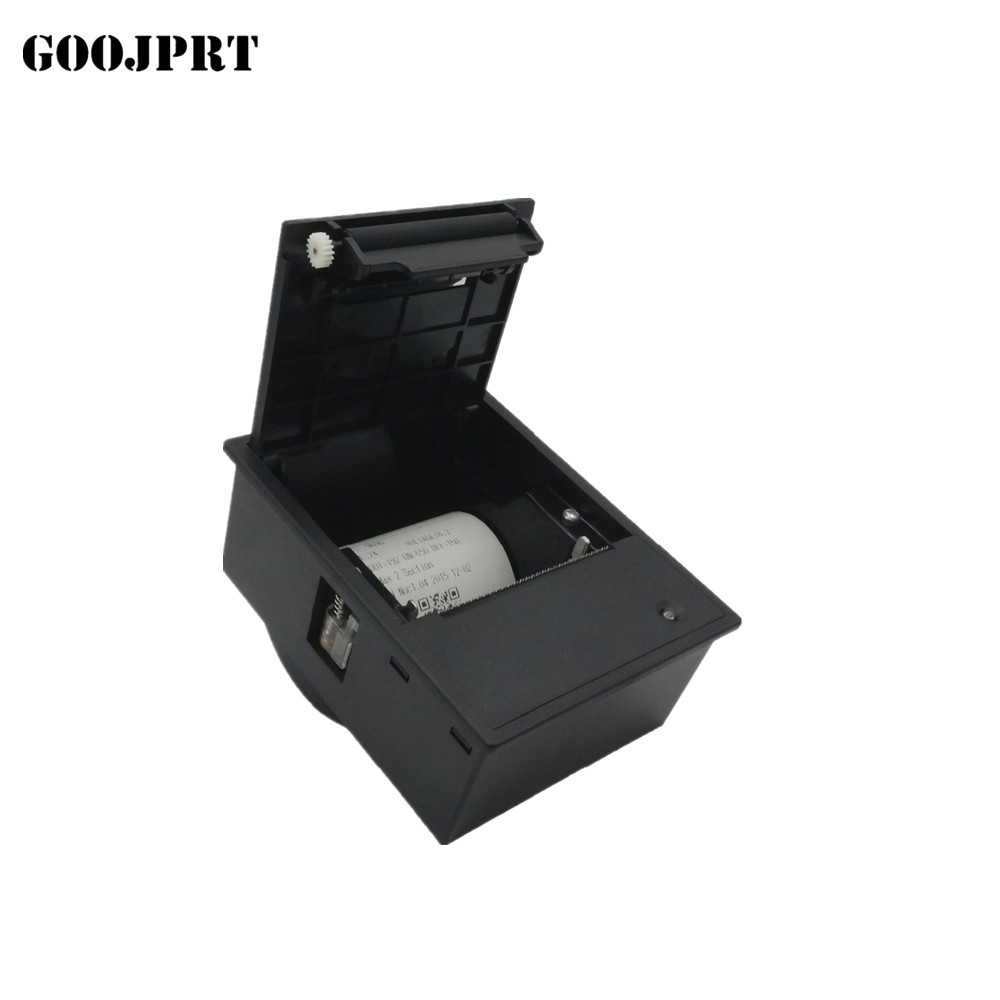

This printer is ideal for interfacing with a microcontroller, you simply need a 5V-9V/12V TTL/USB/RS232 output from your microcontroller to print text, barcodes, bitmap graphics, even a QR code!
Feature:
- Compatible with APS ELM203-LV/HS
- Low noise thermal printing
- High printing speed:50-80mm/s
Application:
- Medical Equipment
- Measuring equipment
- Gas pumps
Specification:
| MODEL | CSN-A1K |
| Printing Method | Thermal Line |
| Printing Speed | 50-80mm/s |
| Resolution | 8dots/mm,384dots/line |
| Effective Printing Width | 48mm |
| Character Set | ASCII,GB2312-80(Chinese) |
| Print Font | ANK:9×17,12×24,GBK:24×24 |
| Paper Type | Thermal Paper |
| Paper Width | 57.5±0.5mm |
| Paper Thickness | 0.06-0.07mm |
| Paper Roll Diameter | Max:40mm |
| MCBF | 5 million lines |
| Interface | Serial(RS232,TTL)/USB |
| Insert Depth | 34.65mm |
| Power Supply (Adapter) | DC5V-9V/12V |
| Outline Dimension (WxLxH) | 76.8×77.4×47.7mm |
| Installation Port Size | 72.8×73.26mm |
| Color | Black |
FAQ:
Q: How do I change the baud rate or language by myself?
A: We will provide you the setting toll and guide line to you by email.
Q: Does this panel printer could be used in car meter reading?
A: Of course, yes.
Q: Do you provide cables when I purchase the panel printer?
A: Yes,it including the power cable and port cable.
Q: What about payment terms
A: Paypal, western union, T/T in advance
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customers.
